Securing Data transmission to Log Analytics v2 with Azure Function

In this post I will show you a way to securely send data to Log Analytics v2 using Azure Function and Log Ingestion API.

Context

Log Analytics is really useful to create your own dashboard with custom data.

You can for instance use a remediation script to collect data from your Intune devices and send them to Log Analytics.

For this, you need to use the Log Ingestion API.

The process can be found in my post here.

By default, MS recommands to create a app registration to use the Log Ingestion API.

The issue is that you need to provide info about the app in your script: appid, secret.

In this post we want to avoid this and we will see a way to do this.

The solution

In my previous post I explained how to to this using Azure Automation.

Noe let's do it using Azure Function.

It works as below:

1. An Azure Function with managed identity is created

2. A script is used to collect data on your devices

3. The script sends data to the Azure function

4. The Azure function sends data to Log Analytics through the managed identity

Get script

Click on the below GitHub picture to get the scripts.

You will find:

- Assign_permissions.ps1: script to add permissions to the MI

- Function.ps1: the Azure function script

- Remediation scripts folder sample

Prerequisites

You need first to add prerequisites to use the Log Ingestion API aka Log Analytics v2.

See my post here to get more info.

Creating the Azure function

Purpose: here we will create the Azure function that will be used to run the script.

1. Go to Azure

2. Go to Function app

3. Choose Consumption

4. Click on Select

5. Choose a Subscription, resource group and region

6. Type a name

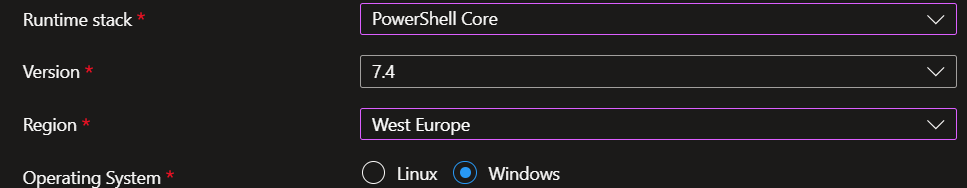

7. In Runtime stack, choose PowerShell

8. In Version, choose by default

9. In OS, select Windows

10. Click on Review+Create

11. Click on Create

Setting Managed Identity

Purpose: the managed identity is used to authenticate to your tenant, this way we don't need to provide credentials.

It allows you to avoid the credentials part.

When you configure the managed identity, a new Azure Enterprise application will be created.

This one will be used to authenticate to our tenant and do API calls.

For that we will proceed as below:

1. Go to your function app

2. Go to Identity

3. Go to System assigned

4. Select On

5. Click on Save

6. Click on Yes

7. When it's configured a new enterprise application will be created with the same name than the automation account

Adding permissions

Purpose: in order to be able to check if the device exists and is managed, we need the following permission.

We will proceed as below:

1. Edit the Assign_permissions.ps1 script

2. Modify variable $TenantID and $DisplayNameOfMSI

3. Run script with global admin rights

Creating the function script

1. Go to your function app

2. Click on Create function

3. Select HTTP trigger then Next

4. Type a name

5. In Authorization level, choose Anonymous

6. Click on Create

7. Go to Code + Test

8. Select Run.ps1

9. Copy content of the Function.ps1

10. Click on Save

11. Go to Get function URL

12. Copy link for later (without the ?)

13. Go to App files

14. Go to profile.ps1

15. Check that the following code is there:

Adding DCR role

Now we need to give the application permission to use the DCR.

For that proceed as below:

1. Go to your DCR

2. Go to Access Control (IAM)

3. Click on Add role assignment

4. Check Monitoring Metrics Publisher

5. Click on Next

6. Check User, group, or service principal

7. Click on Select members

8. Search the function app managed identity

9. Click on Select

10. Click on Review + assign

Secure the process

In remediation script or basic script

Here we work on the script that sends data to Log Analytics (through the automation runbook).

The process is easy:

1. Collect data in an array

2. Adds table name and DCR ID to the array

3. Converts content to JSON

4. Sends data to the runbook through the webhook

In the Remediation sample script folder you can find two scripts to collect data from your devices:

- Send_drivers.ps1

- Send_services.ps1

Let's give a look to the first one.

We will proceed as below:

1. Provides information about DCR, Table and function app in variables $DCR, $Table and $AZ_Function_URL.

2. Collects required info (here drivers):

3. Converts content to JSON:

4. Sends data to the runbook using the webhook

Here you may noticed that in the header I added a password in the variable $Secure_header.

It will be used by the runbook to check if it has been correctly called from a secure script.

In the runbook we will need to compare the info of course.

Ok, ok it's not enough secure, so now let's work on the azure function side.

In the app function script

In the script that sends data, we added a password. To check it in the function app we will proceed as below:

If the password provided in the remediation script is not the same the function app script will be stopped.

Now to make it a bit more secure, we need to be sure that the source from which the data has been sent is valid.

For that we will check is the source device is compliant and managed.
