Intune reporting with Log Analytics: analyze disk size to see what's taking up place

4 A+ A-

In this post I will show you a report of devices with low disk space allowing you to understand what takes place and resolve it.


The solution

This will resume in few steps:

- Creating a Proactive Remediation sript

- This script will be executed on your devices

- It will check some information

- It will send info to Log Analytics


Get the files

Click on the below GitHub picture to get required below files:

- LA_DiskSize_workbook.json

- Detection_script.ps1

How it looks like ?

The Log Analytics will display below information:

- Disk full size, free space, free space percent, OneDrive size on disk...

- Devices with low disk space (per model)

- Top 10 models with low disk space

- Top 10 devices with low disk space

- Devices with Always keep on device checked at OneDrive root

- Larger folders in current user profile for devices with less than 20% free space

- Larger folders in C:\Users for devices with less than 20% free space

- Larger folders in C:\ for devices with less than 20% free space


The workbook is divided in 3 tabs:

- Disk size resume

- OneDrive usage

- View larger content on disk

See below an overview:

See below details.

Disk size resume tab

Device free space percent

You can find a pie chart with number of devices per free space %.

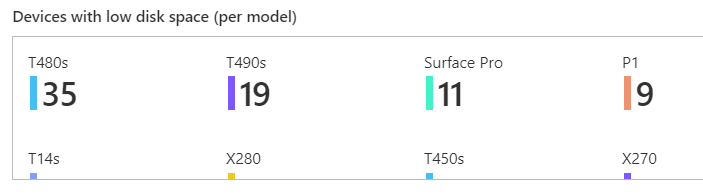

Devices with low disk space (per model)

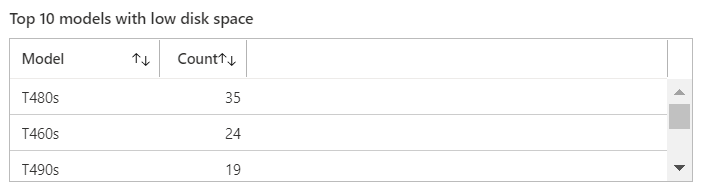

Top 10 models with low disk space

Top 10 devices with low disk space

Device size details

The following grid will display different information relative to disk space on devices:

- Computer name

- Free space %

- OneDrive size on disk %

- Disk size

- Disk freespace

- OneDrive size

- OneDrive size on disk

- Desktop size

- Desktop size on disk

- Documents size

- Documents size on disk

- Pictures size

- Pictures size on disk

OneDrive usage tab

OneDrive size on disk percent

You can find a pie chart with number of devices per OneDrive size on disk %.


Always keep on device option

This option is a OneDrive option that you can enabled on a folder or at OneDrive root.

If you enable it at OneDrive root all your documents will be stored locally too.

It means it can have a huge impact on disk size.

The following chart will check how many devices have this option enabled at OneDrive root.

See below an overview:

Then the workbook displays list of devices that have this option enabled:

Larger content on disk tab

Now we have information about disk size, the next step is to know what take more space on disk.

The next grids allows you to display larger content on devices that have less than 20% of free disk space.

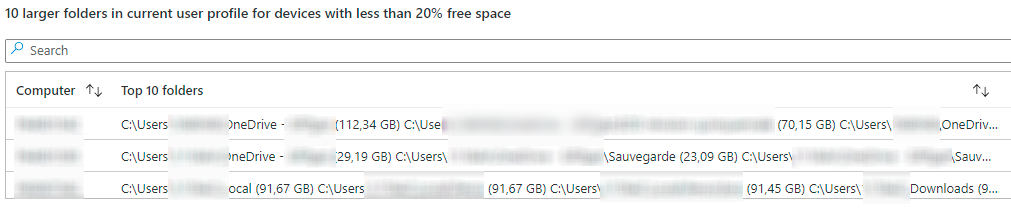

Larger folders in current user profile

Larger folders in C:

Larger folders in C:\Users

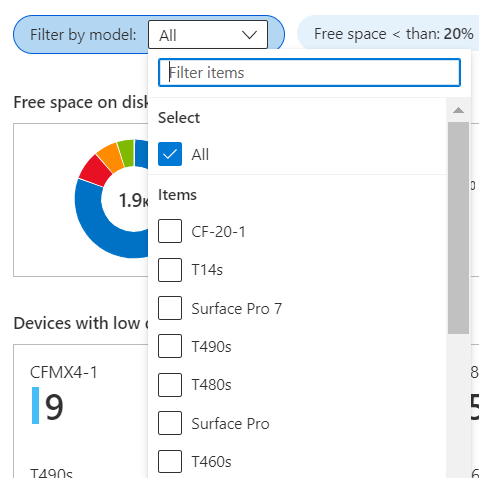

On each tab there are two filters available:
- Filter by model
- Filter on disk free space

The first one allows to see result for some specific models.
See below an overview:

The secondone allows to see result depending of free disk size.
See below an overview:

Log Analytics information

In order to create this report we will need some information relative to the Log Analytics workspace.

See below required info:

- Workspace ID

- Primary key

- Name of the custom log to create or update


To get those information go to Log Analytics Workspace > Agents management

You will find both Workspace ID and Primary key.


Then we will proceed as below:

1. Open the file Detection_script.ps1

2. Fill below variables:

- $CustomerID: workspace ID

- $ShareKey: Primary key


Creating the Proactive Remediation package

1. Go to the Microsoft Endpoint Manager admin center

2. Go to Reports

3. Go to Endpoint Analytics

4. Go to Proactive Remediations

5. Click on Create script package

6. Type a name

7. Click on Next

8. Click on Detection script file

9. Browse the script Detection_script.ps1

10. Click on Next

11. Select the group

12. In the Schedule part, choose when the package should be run.

13. Click on Apply

14. Click on Next

15. Click on Create


Adding the workbook

In this part we will add the report.

The report can be downloaded on GitHub, lin mentioned above.

The report is the file: DiskSize_Workbook.json

To add it, proceed as below:

1. Go to the Azure portal

2. Go to Log Analytics workspace

3. Go to workbook

4. Click on New

5. Go to Advanced editor, at the top

6. Remove content

7. Go to the GitHub link, there

8. Click on the copy button as below

9. Click on Apply

10. Click on Done editing then Save
