Powershell tool: Windows Sandbox Configuration Manager


In this post I will show you the tool I created that allows you to generate and edit Sandbox configuration file with WSB extension.

Two weeks ago I explained how to enable and configure Windows Sandbox on Windows 10 1903.
We will now see how to generate the configuration files.

How to get it ?



Configuration files reminder
You can run Windows Sandbox from two ways:
From the start menu, it will open a fresh Sandbox
From a configuration file, it will open a Sandbox with the selected configuration
The configuration file is an XML file, composed of differents tags for the below configuration:
- Virtualized GPU (Enable or Disable)
- Networking (Enable or Disable)
- Share a folder from the host (Path and access)
- Startup script
- Startup program

What it does ?
The tool is composed of four tabs:
- Basic infos
- Mapped folders
- Command
- Overview: View the current configuration file

Basic infos
- Set Sandbox name
- Set Sandbox path
- Enable or disable networking
- Enable or disable VGpu

Mapped folders
- Share a new folder from the host computer
- Edit an existing shared folder path
- Remove a shared folder from the configuration file

Commands
- Add a new startup command
- Edit an existing startup command
- Remove an existing startup command
In the next version I will add options to easily add, PowerShell, cmd...

How it looks like ?
There are two graphic versions of the tool:
- HamburgerMenu version: Sandbox Configuration Manager v1
- TabControl version: Sandbox Configuration Manager v2

See below an overview of each version
Sandbox Configuration Manager v1

Sandbox Configuration Manager v2

For each version a button located in the title bar allows you to change the main theme of the tool, as below:



How to use it ?

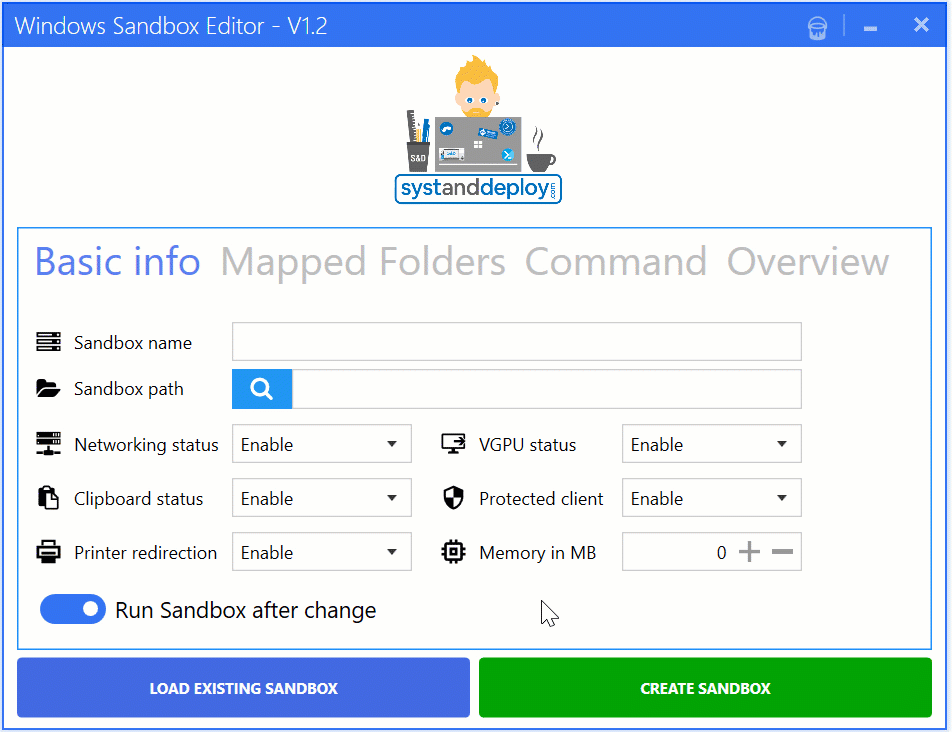

Load an existing configuration
1 / Click on the Load existing Sandbox button
2 / Browse to the WSB file and click on OK
3 / The configuration file options will be loaded
4 / Click on the Save existing sandbox button to apply change


Change basic infos
1 / Go to the first tab
2 / Type the name of the Sandbox to create
3 / Select the path of the new Sandbox
4 / Use the Networking status ComboBox to set the networking tag
5 / Use the VPGU status ComboBox to set the VGpu tag
6 / If configuration is over, click on the Create Sanbox button

Share a new folder
1 / Go to the second tab
2 / To set readonly access on the folder let it by default
3 / To set readonly access to false click on the ReadOnly switch
4 / To import just one folder let it by default
5 / To import all folders located in a main folder, click on Single folder switch
6 / Click on the Browse folder button
7 / Browse to the folder to share
8 / If configuration is over, click on the Create Sanbox button


Edit an existing folder
1 / Go to the second tab
2 / In the DataGrid, click on the  pencil button from the folder to change
3 / A dialog will be displayed
4 / Change what you want
5 / Click on Save
6 / Your changes will be applied in the datagrid
7 / If configuration is over, click on the Create Sanbox button


Remove an existing folder
1 / Go to the second tab
2 / In the DataGrid, click on the remove button from the folder to remove


Add a new command
1 / Go to the third tab
2 / Type your command and click on the + button
3 / The command will be displayed in the DataGrid
4 / If configuration is over, click on the Create Sanbox button


Edit an existing command
1 / Go to the third tab
2 / In the DataGrid, click on the  pencil button from the command to change
3 / A dialog will be displayed
4 / Change what you want
5 / Click on Save
6 / Your changes will be applied in the datagrid
7 / If configuration is over, click on the Create Sanbox button


Remove an existing command
1 / Go to the third tab
2 / In the DataGrid, click on the remove button from the command to remove
